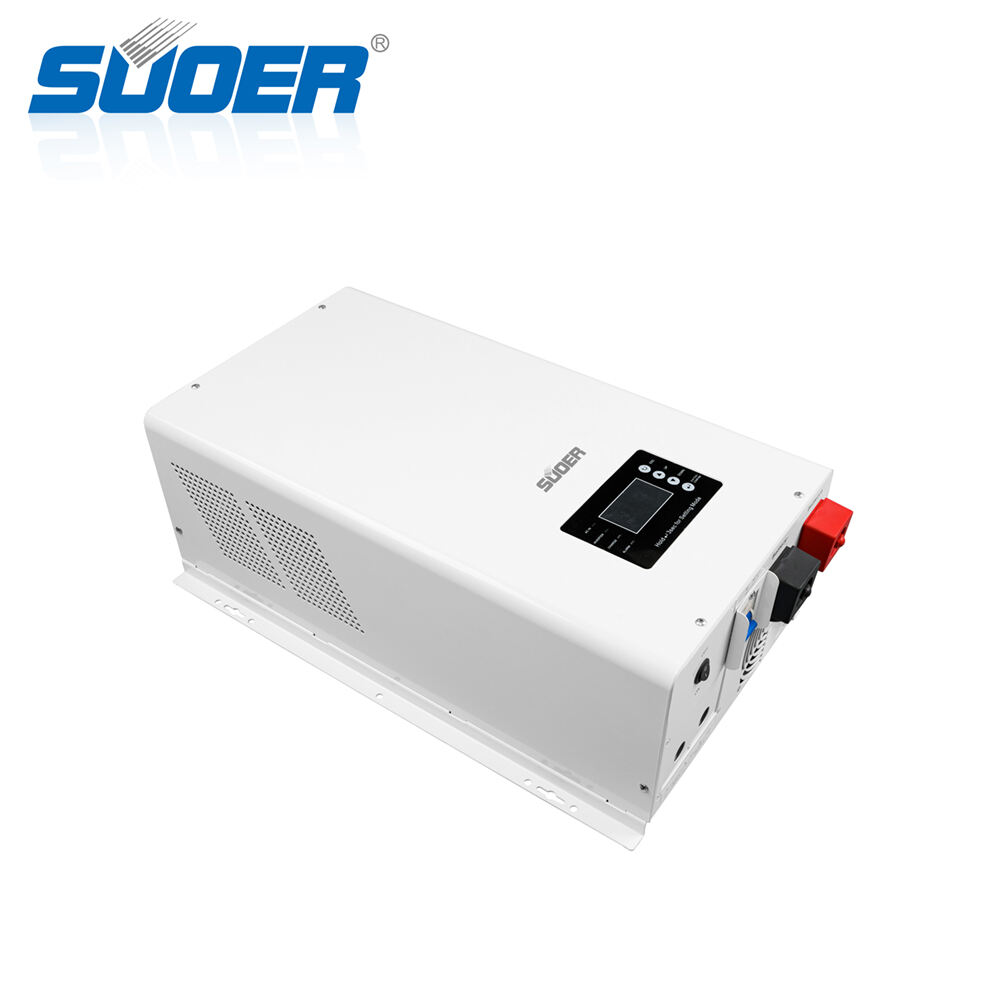

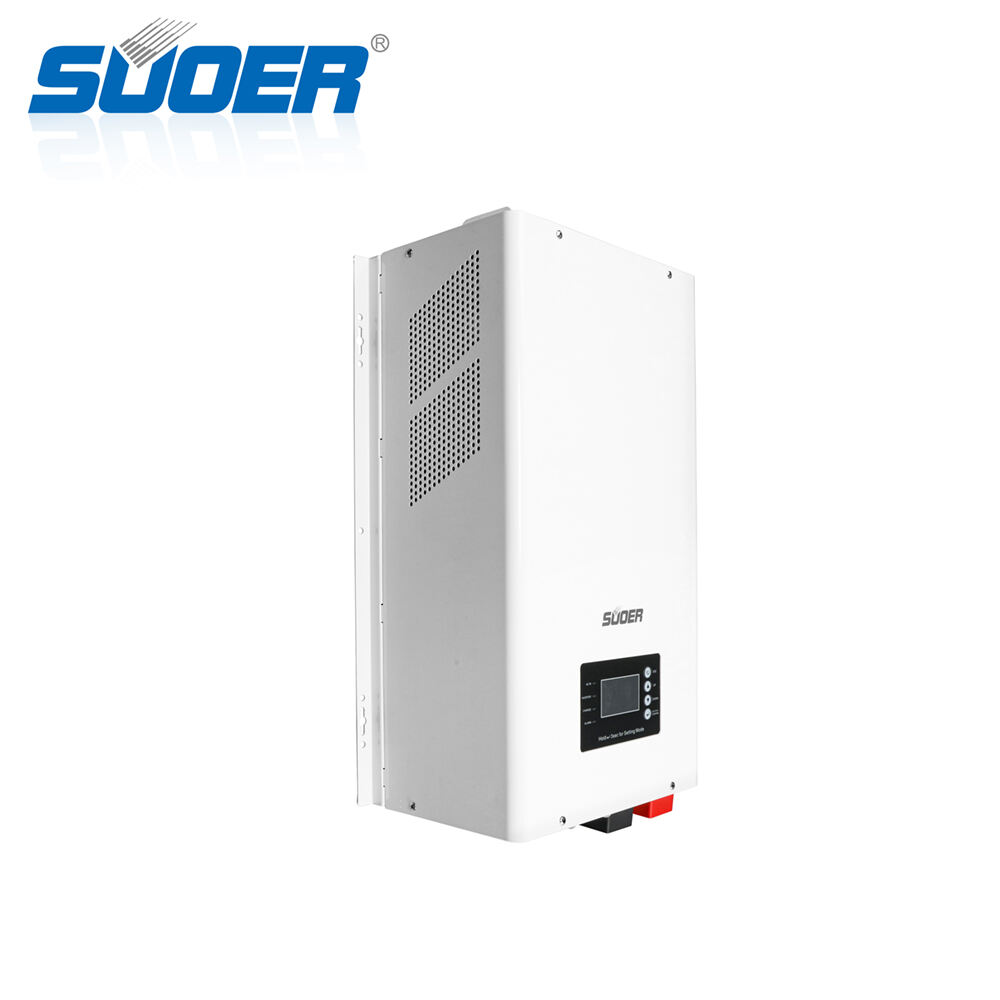

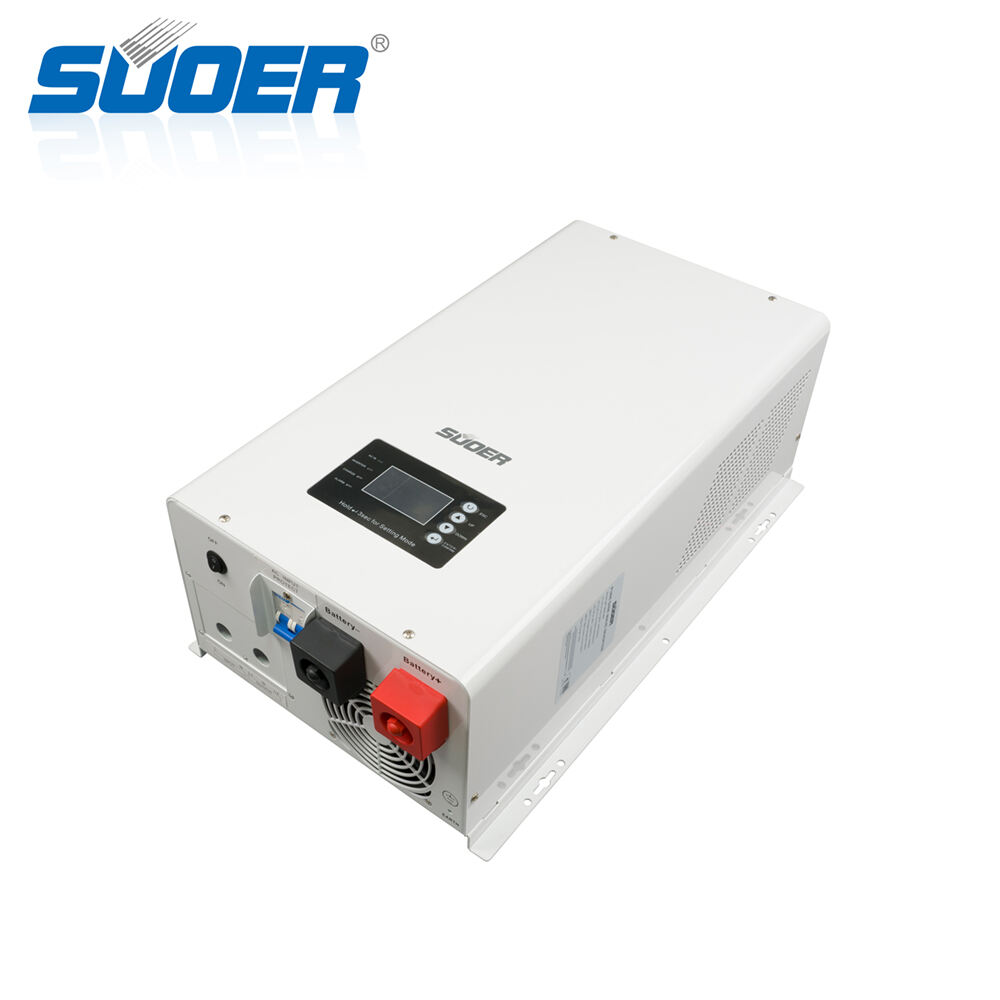

SP12KW-48V 12000W Pure Sine Wave Hybrid Solar Inverter 48V Off-Grid with LED Display 50/60Hz Low Frequency Split Phase Single Output 240Vac
12000W Pure Sine Wave Solar Inverter Split Phase 48V Off-Grid with LED Display 50/60Hz Single Phase Output
MOQ:10 Pcs
Feature
• Dual outputs, for smart load management
• Maximum PV input current increases to 27A
• Status indication with RGB lights
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Selectable high power charging current
• Compatible to Utility Mains or generator input
• Built-in anti-dust kit
• Optional DC output for DC fan, LED bulb, router and so on
• Optional DC output for DC fan, LED bulb, router and so on
- Overview
- 12000W Pure Sine Wave Solar Inverter Split Phase 48V
- Parameter
- Related Products

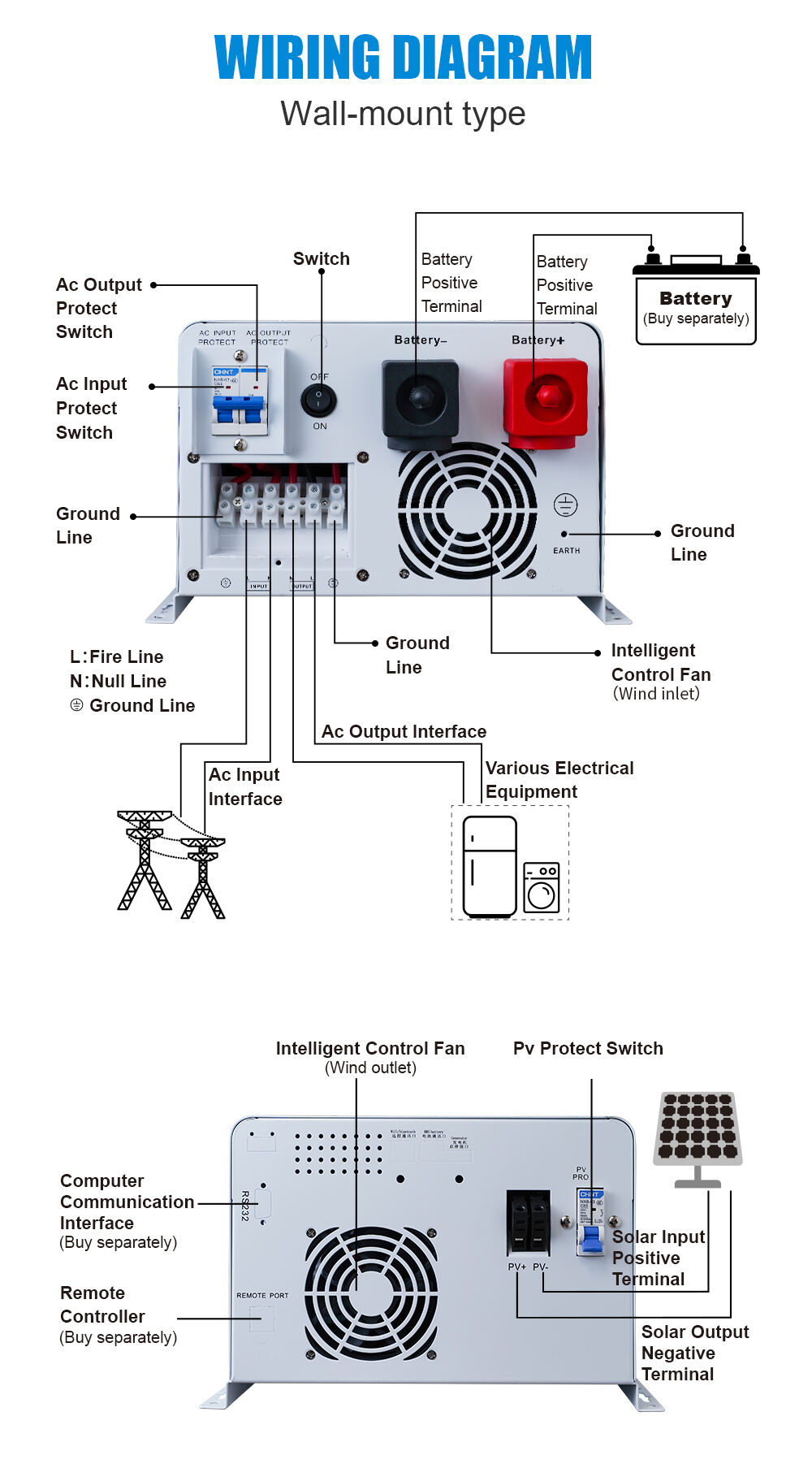

Use 4/0 AWG cables for ≤3ft battery links (minimize voltage drop).
Ground inverter chassis and AC neutral per NEC.
Install DC fuses (300A for 6kW, 400A for 12kW) within 18" of battery.
🔌 1. Key Advantages & Features
Industrial-Grade Reliability: Built with heavy-duty toroidal transformers, our 6kW/12kW split phase low frequency inverters deliver 3-5X surge capacity (e.g., 18kW/36kW peak) to start motors, pumps, and tools effortlessly. Unlike high-frequency inverters, they withstand voltage spikes without shutdowns.
Pure Sine Wave Output: Clean, stable 240V/120V AC dual voltage (±2% THD) protects sensitive electronics (medical devices, servers, CNC machines) from damage.
Zero Voltage Drop: Maintains full power even at 100% load – critical for well pumps or air compressors.
Battery Flexibility: Compatible with 48V lead-acid/LiFePO4 banks. Features auto battery prioritization and low-voltage cutoffs to extend lifespan.
⚙️ 2. Product Specifications

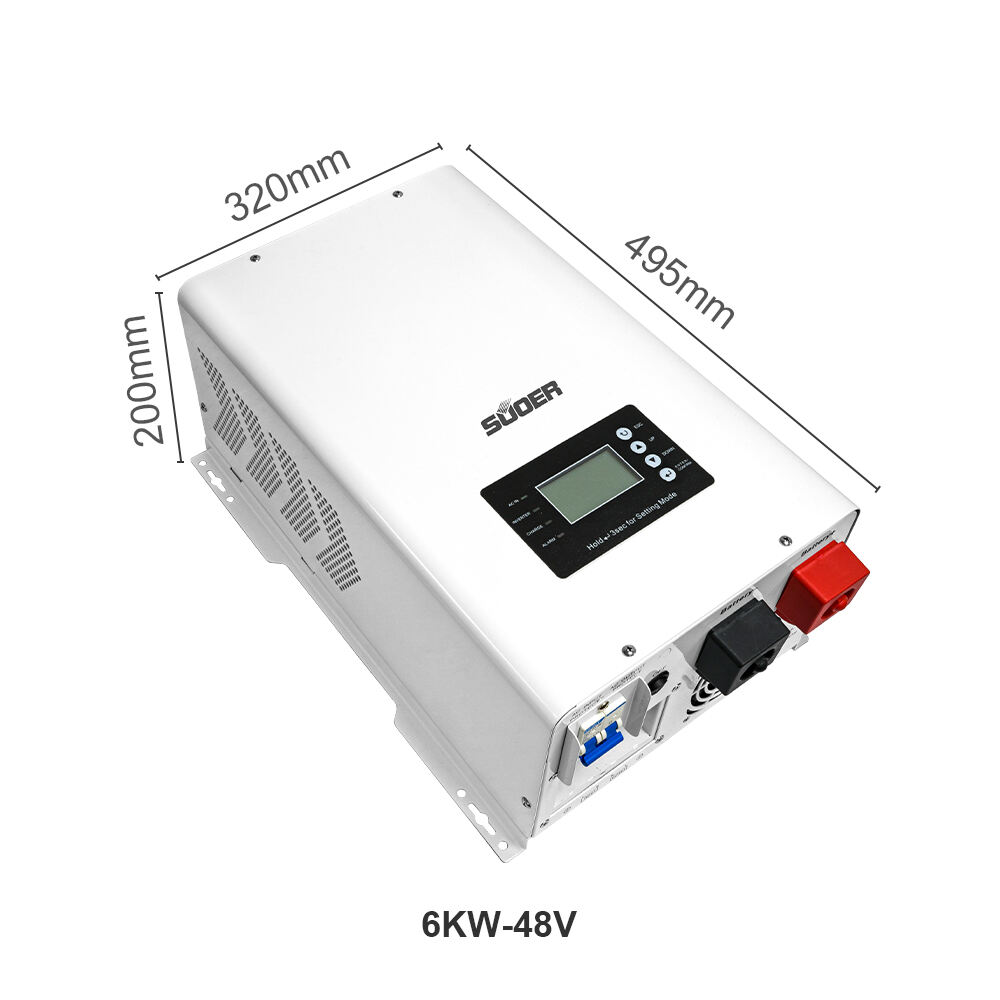

Model A (6kW Continuous / 18kW Peak):
Input: 48V DC | Output: 120V/240V AC split phase
Efficiency: 92% | Transfer Time: <10ms
Ports: 4x AC outlets (NEMA 5-20R), 1x RS485, 1x dual AC input for grid/gen backup
Model B (12kW Continuous / 36kW Peak):
Parallel Capable: Stack 2 units for 24kW output (ideal for whole-home backup).
Smart Monitoring: WiFi/APP control (view power flow, set schedules via iOS/Android).
🏠 3. Top Applications

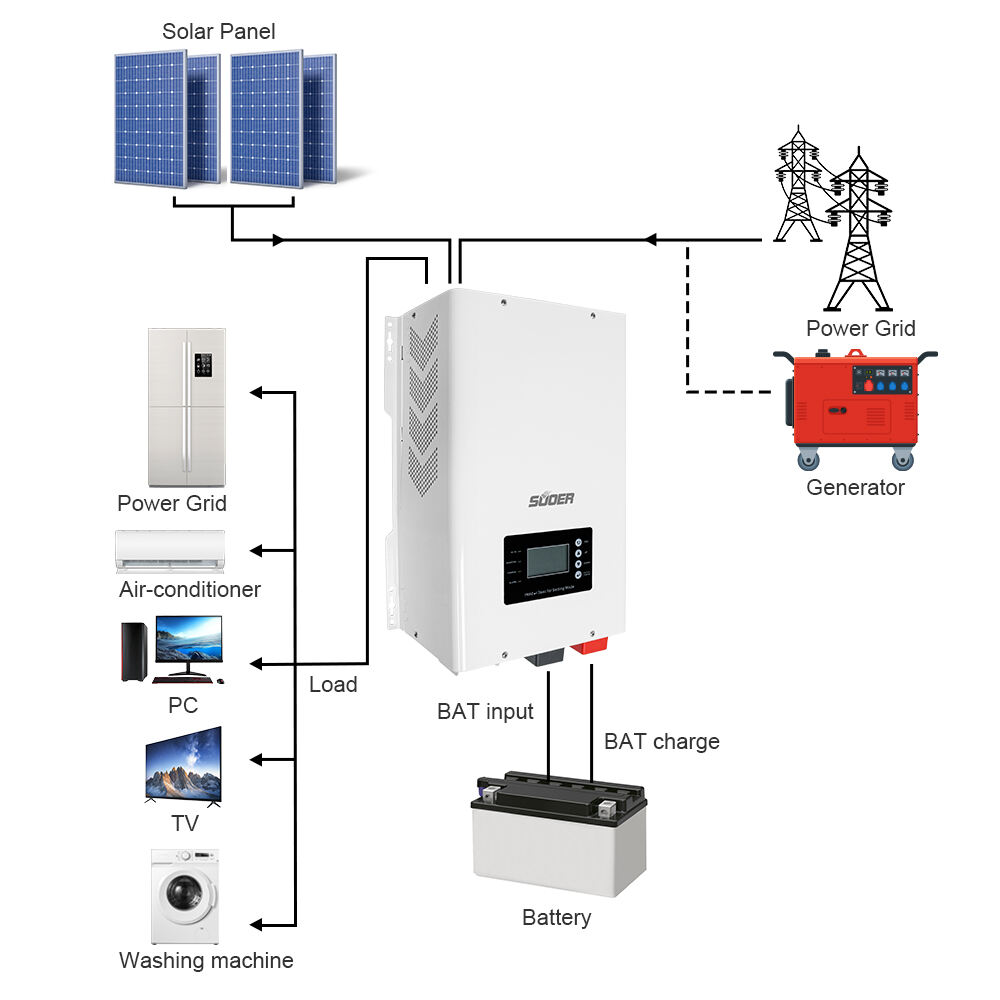

Off-Grid/RV Solar Systems: Powers 240V well pumps, HVAC, and kitchen appliances simultaneously.
Emergency Backup: Seamlessly runs refrigerators, medical equipment, and lights during outages (connect to batteries + solar/generator).
Industrial Sites: Drills, compressors, and 3-phase motor conversion (using rotary transformers).
Farms & Workshops: Handles welding machines, livestock feeders, and irrigation controllers.
Safety Note:
|
Inverter type
|
Split-phase low-frequency inverter
|
|
Model Number
|
SP12KW-48V |
|
Application
|
Solar Power System Home
|
|
Output Voltage
|
230VAC±5%
|
|
Waveform
|
Pure sine wave
|
|
Max PV Array Power
|
12000w |
|
Inverter frequency
|
50Hz/60Hz Auto Sensing
|
|
Inverter efficiency
|
90%
|
|

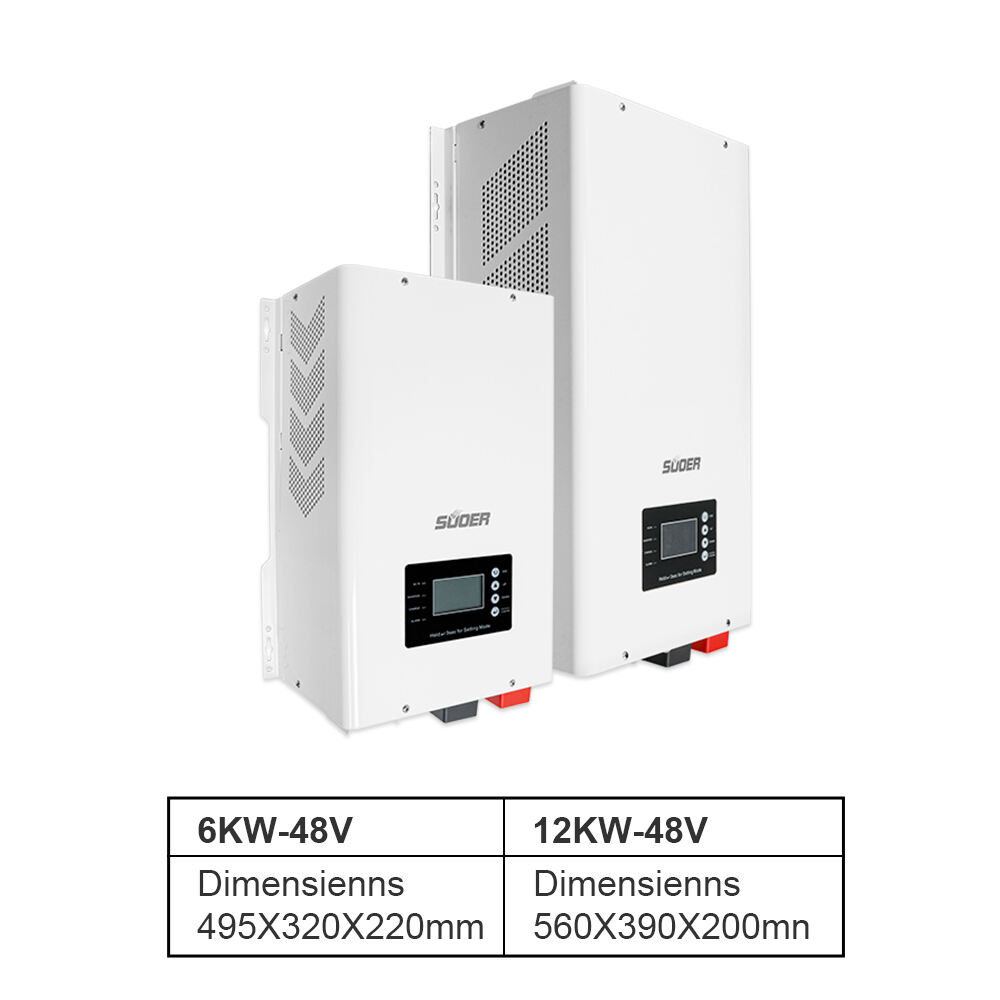

Size
|
560x390x200mm
|
|
Color
|
White
|
