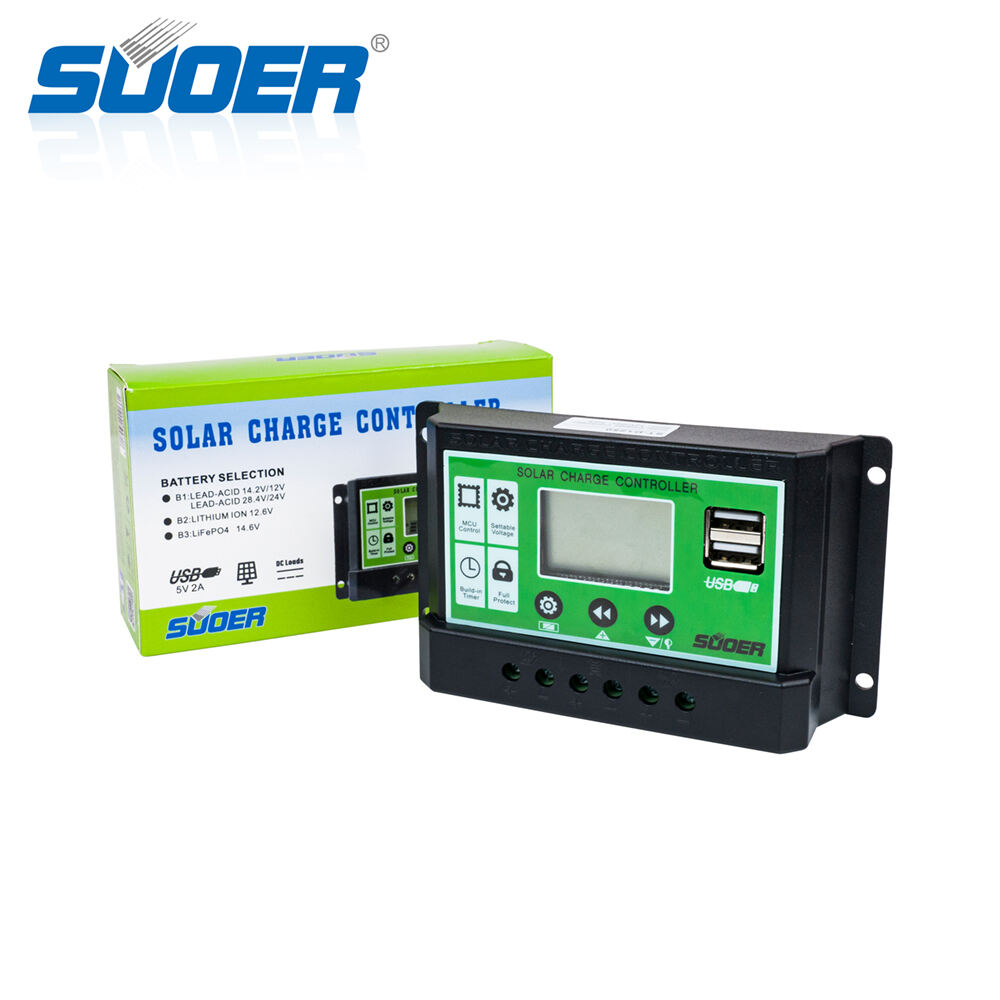

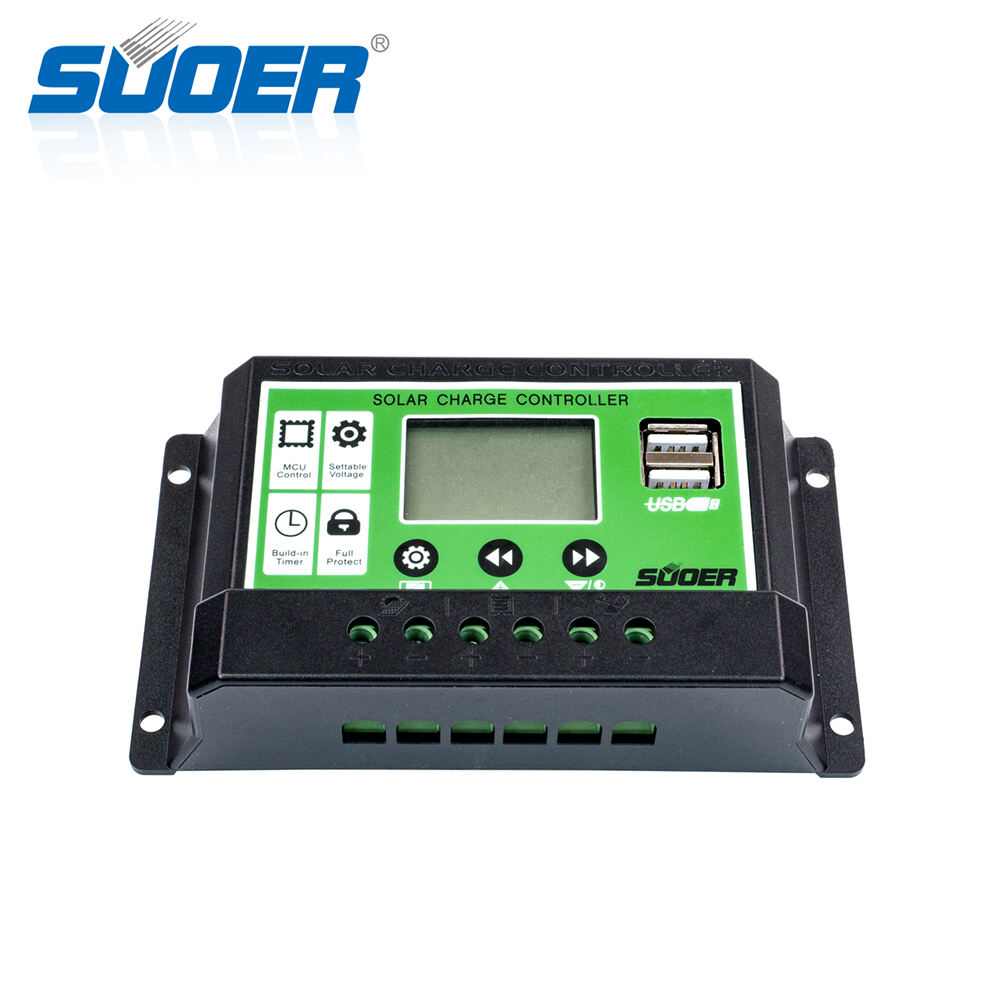

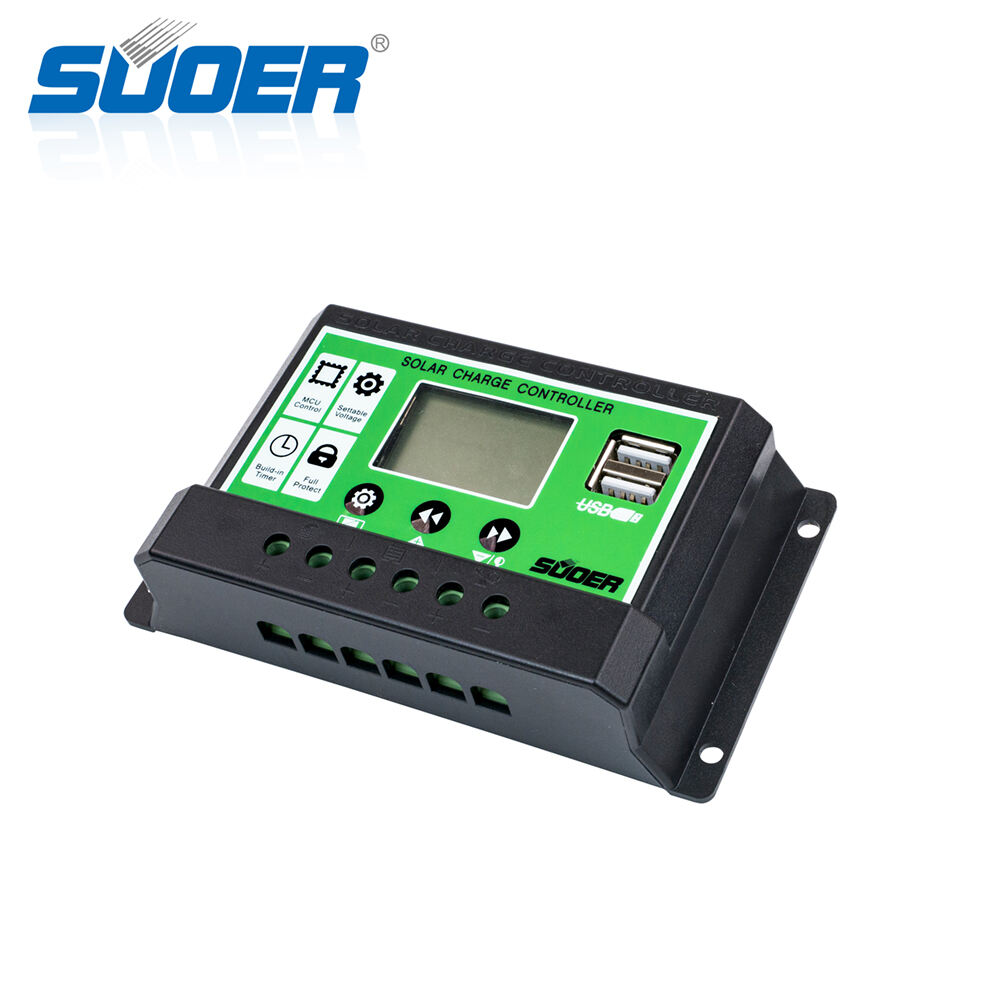

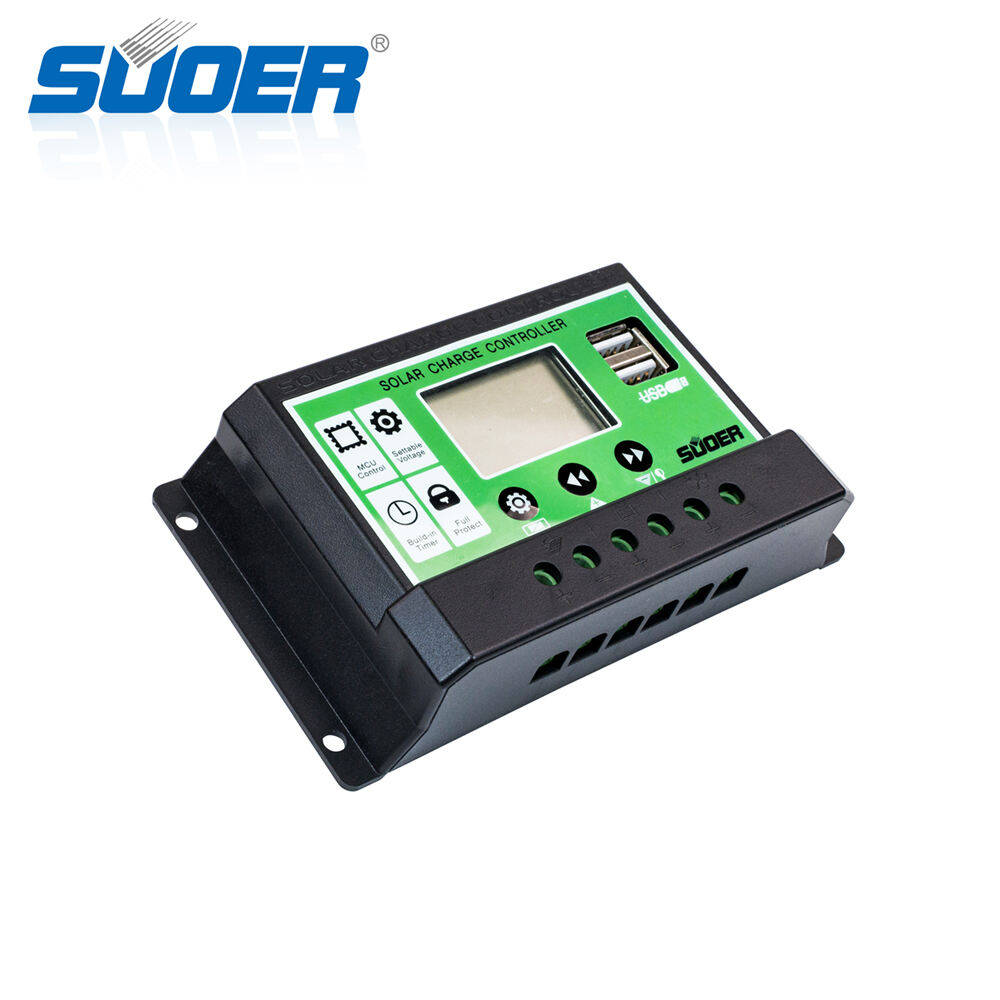

Intelligent 20A Solar PWM Charge Controller with LCD Display Smart 12V 24V Solar Charger
Product Features
1. Clock timing function
2. Built-in two 5V 2.1A USB interfaces
3. Extreme Low Power Consumption
4. Built-in IR self-learning infrared remote control to turn the DC loads on and off

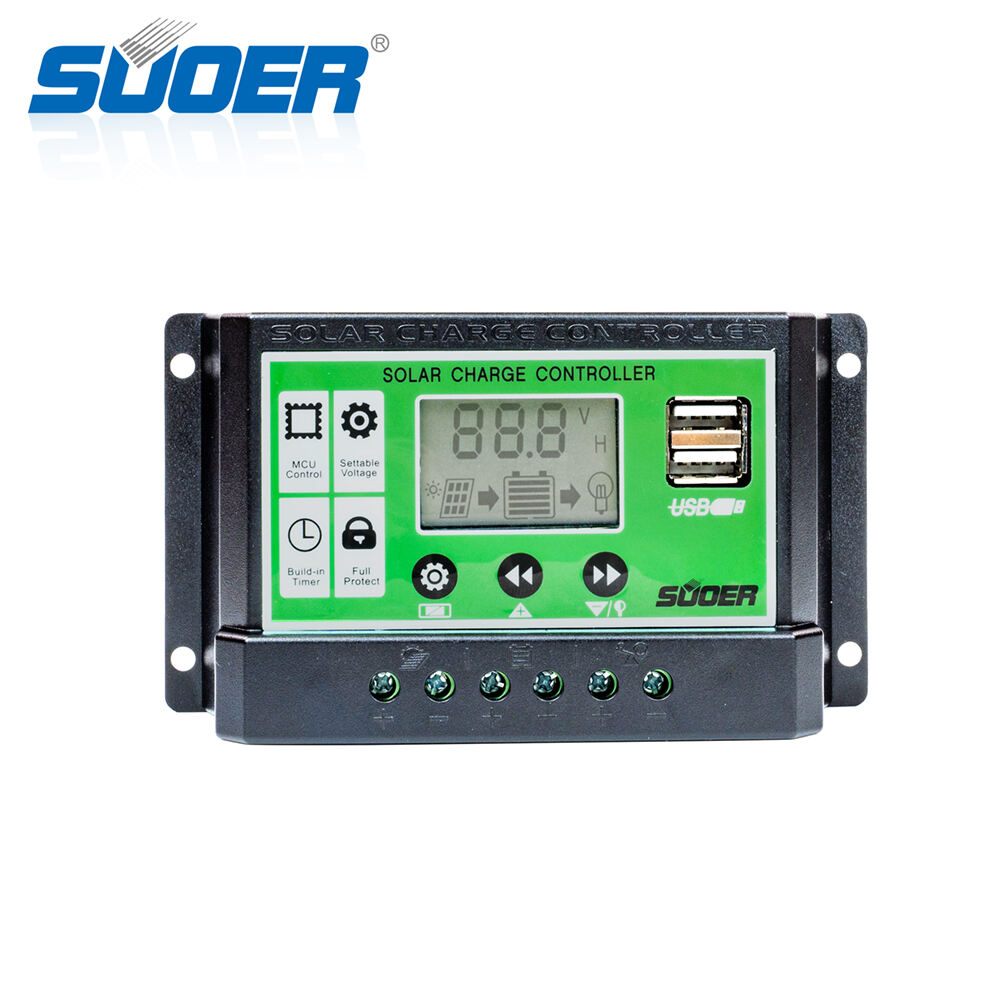

5. LCD Display with backlight
6. Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)
7. Light control mode,Time control mode
8. Reverse protection,short circuit protection
9. Designed for 12V/24V solar power system
10.Hanging style design makes it convenient to install
11.Available in 10A/20A/30A
12.Simple options,automatic memory retention of users' settings
- Overview
- Parameter
- Related Products
|

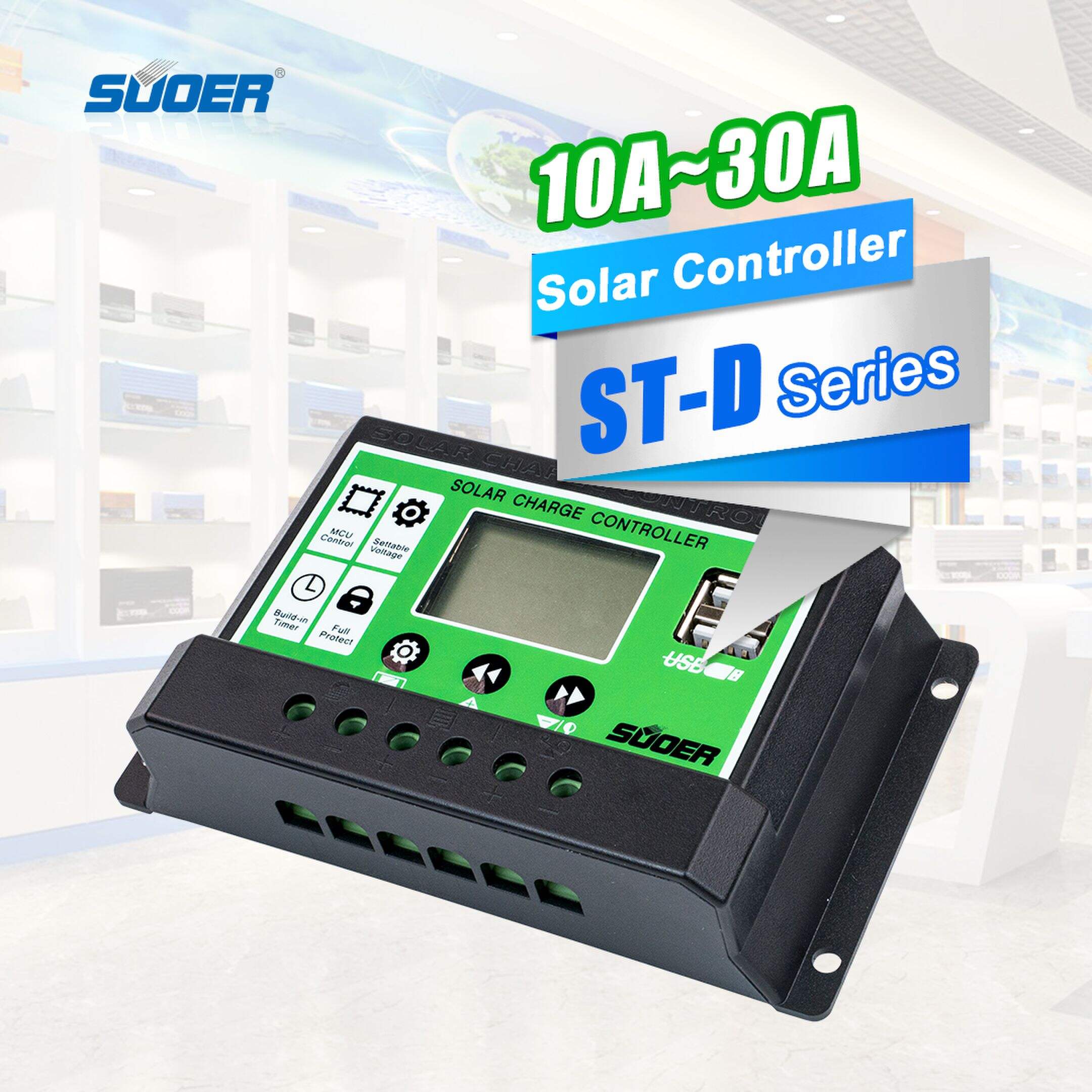

Technical Parameter ST-D-series
|
|||||||
|
MODEL
|
ST-D1210
|

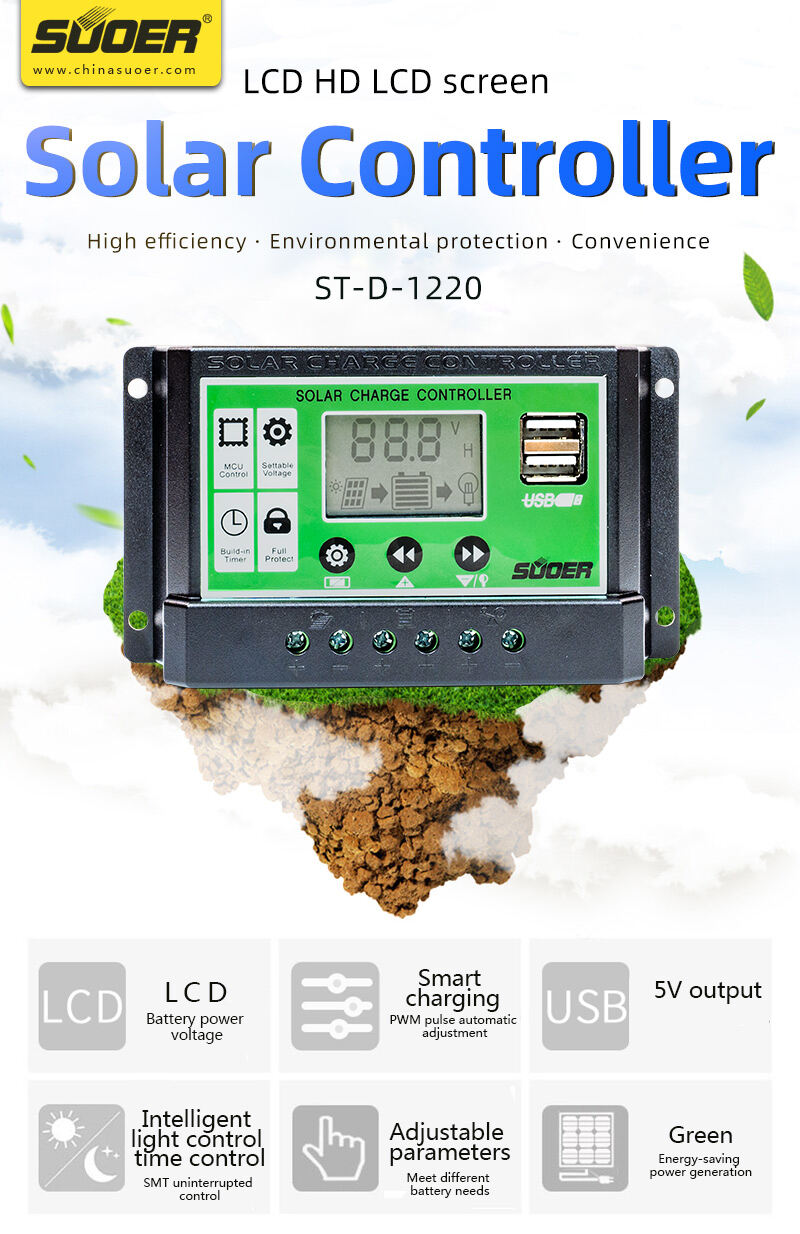

ST-D1220
|
ST-D1230
|
ST-D1240
|
ST-D1250
|
ST-D1260
|
|
|
Battery voltage
|
12V-24VAUTO
|
||||||
|
Charge current
|
10A
|
20A
|
30A
|
40A
|
50A
|
60A
|
|
|
Discharge current
|
10A
|
10A
|
10A
|
30A
|
30A
|
30A
|
|
|
Max PV
Input Power |
12V
|
120W
|
180W
|
240W
|
300W
|
360W
|
420W
|
|
24V
|
240W
|
360W
|
480W
|
600W
|
720W
|
840W
|
|
|
Max solar input
|
12V battery,the highest 23V;
24V battery when the highest 46V |
||||||
|
Battery type
|
B1=Lead acid battery 12V/24Vauto
B2=Lithium-ion battery (lithium battery)3 strings 3.7V=11.1V B3=Lithium iron phosphate battery 4 strings 3.2V=12.8V |
||||||
|
Equalization
|
14.4V(B1) 12.6V(B2)14.6V(B3)
|
||||||
|
Discharge stop
|
10.7V(B01)9V(B2) 10V(B1)
|
||||||
|
Dischargereconnect
|
12.6(B1) 10.5V(B2)12V(B3)
|
||||||
|
Voltage of open light
|
Solar panel 8V(Light lights delay)
|
||||||
|
Voltage of close light
|
Solar panel 8V(Light off delay)
|
||||||
|
USB output
|
2 way USB output,5V/2.5A(MAX)
|
||||||
|
Self-consume
|
<10mA
|
||||||
|
Operating temperature
|
-35~+60C
|
||||||
|
Size/Weight
|
133.5*70*35mm/165g
|
||||||
